Product>>Jumper Bar  短路條>> 短路器 端子台 短路條 Jumper Bar 短路片

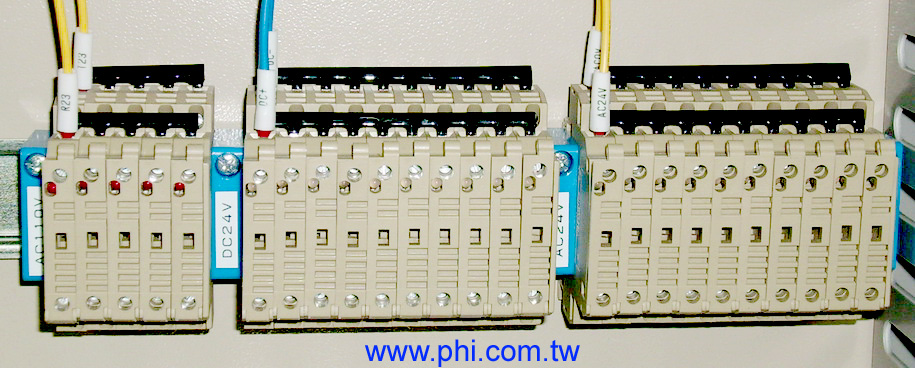

PHI Comb Type Jumper Bar: Better & Easier 端子台 短路條



We have a new product ready for you: PHI Pluggable Comb Type Jumper Bars for PLC terminal blocks. These brand new design jump bars are much easier for your customers to use them with TE Connectivity ENTRELEC terminal block applications and can be used with other standard terminal blocks (for CONTA-CLIP, Emerson DeltaV I/O ,etc). The new jumper bars with removable poles make independent outputs possible. The jumper bars will still have excellent rubber insulation after the poles are removed. This is a brand new excellent products with the best cost performance. It is the longest jumper bar in the world. Great product for automation industry.

  Jumper Bar Jumper Bar
  Jumper bars: long & short poles After removed the poles, the jumper bar still have excellent rubber insulation.





PHI Pluggable Comb Type Jumper Bars



* Extra length with more poles, up to 128 poles.

* Various common sizes for your choices

  (spacing 5, 6 or 8 mm with long or short poles)

* Easy removable poles

* Better insulation design

* Pluggalbe & easy to use for TE Connectivity ENTRELEC terminal blocks

* Carry full rated current of the terminal blocks 30Amp+

* Reasonable prices with better design

* RoHS compliant

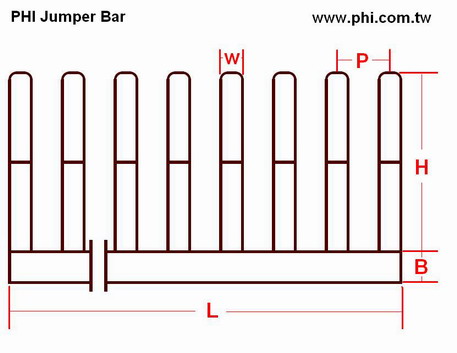

Jumper Bar





Item Number

Poles

Length

Description

Current

Amp

No of

Poles

Pole Spacing

P (mm)

Pole Length

H (mm)

Pole Width

W (mm)

Bar Length

L (mm)

Base Width

B (mm)

PCL5-128P

PCL51-128P

PCL6-106P

PCL61-106P

PCL81-80P

Long

Short

Long

Short

Short

5mm 128LP Jumper Bar

5mm 128SP Jumper Bar

6mm 106LP Jumper Bar

6mm 106SP Jumper Bar

8mm 80SP Jumper Bar

30

30

30

30

30

128

128

106

106

80

5

5

6

6

8

19.0

13.0

22.0

13.0

13.0

2.0

2.5

2.5

2.5

2.5

643

643

648

648

636

5.0

4.0

5.0

4.0

4.0



Jumper Bar

Extra length with more poles.

Jumper Bar









PHI Comb Type Jumper Bar 梳型短路條

1. 具有較好的設計: 插腳pole折斷後, 仍然保持絕緣.

2. 較好品質: 插腳金屬部分也比一般厚

3. 減少邊緣零頭耗損: 短路條長, 插腳 pole 個數多

4. 可用於 Entrelec, CONTA-CLIP, Emerson DeltaV 等

5. 節省超過一半的價錢

6. 符合無鉛 RoHS

7. 自行開發 Made in Taiwan

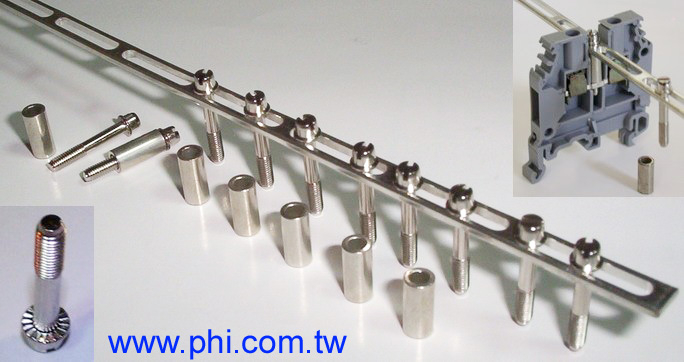

Perforated Jumper Bar + EV6 Screw & Post 組合式 短路條

Power Hub Inc. introduces a new Universal Jumper Bar for Entrelec terminal blocks. It is the longest Perforated Jumper bar in the world with brand new design from PHI. This Perforated Jumper is designed to use with EV6 screws & posts for 6 or 8 mm spacing TE Connectivity ENTRELEC terminal blocks. This new jumper bar is available from PHI now. Cut the perforated bar to the length to you need and place the metal tube on the holes of the terminal block. Secure the bar with the EV6 type self-locking screws to complete the connections. We bring you better products with excellent cost performance.





PHI Perforated Jumper Bar

* Extra length 1.2m (47.2)

* Up to 200 / 150 poles for 6 / 8 mm spacing

* Carry full rated current 30A

* Thickness 2mm

* Easy to assemble

* RoHS compliant



PHI EV6 Screw & Post

* Serrated Flange Screw

* No Washer needed

* Easy & fast to use

* RoHS compliant

  Jumper Bar

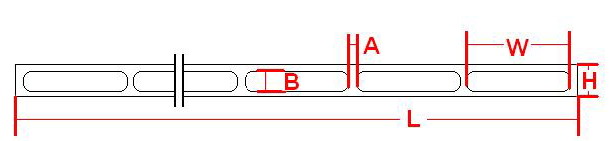

Perforated Jumper Bar - Dimension (mm)

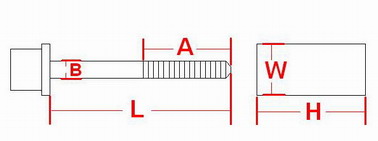

EV6 Screw & Post - Dimension (mm)



Item Number

Description

Current

Amp

No of

Poles

L

H

W

A

B

BJS-6/8-1200

Perforated Jumper Bar 6/8mm

30

 up to 200

1200

6

21

3

3.2



EV6 Serrated Screw & Post

50



18.2

11

5

8.5

2.6



Other item made by PHI you can have at the best cost performance.

PHI Terminal Block End Stop / Marker Holder
