Product>>Wire Connector>> Corning UY UY2 UB Connector U型接頭 3M 續接端子  網路線接線端子

UY2

Corning  Scotchlok UY Connector    in stock   was 3M

* For 2 wire solid copper conductor combination with solvent-resistant plastic construction

* Excellent product for telecommunication industry

* Self-stripping, insulated and moisture-resistant butt connector

用於單芯銅線接續,內部含有剝線刀組、防水膠體,可保護線路接續點不受 潮濕或惡劣環境的影響。體積小、免剝線、使用方便,適用線徑0.4~0.65mm

Corning UY2 接頭 was 3M        No Stock                           Made in Mexico

UY2 功能相同,適用線徑0.4~0.9mm




Item

 No.

Max.

Insulation

(mm)

Wire Range

Packing

  Temp.溫度

AWG

mm2

UY

0.060"

(1,52 mm)

22-16

0.7-0.4

1000 pcs/box



10 boxes/case

Corning -40 ~ 140 度C

UY2

0.082"

 (2,08 mm)

19-26

0.9-0.4



More telecommunication industry choices from 3M

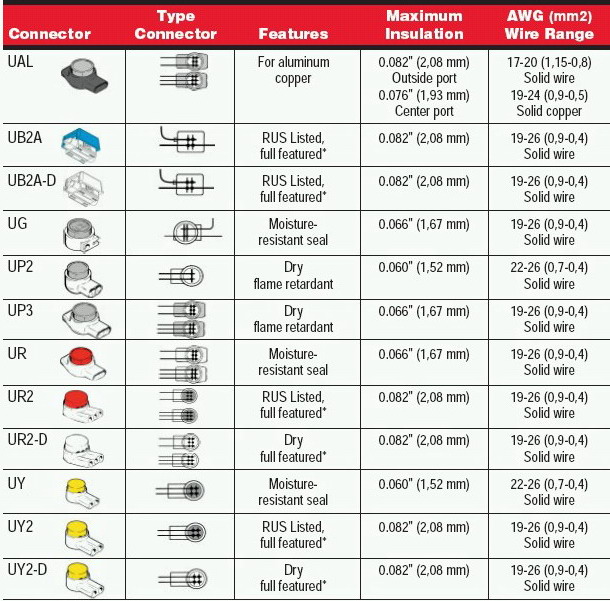

Specification Information for 3M Scotchlok Insulation Displacement Connectors

UY2

*Full Featured Offers full wire range capability, increased port size to accommodate up to 0.82" (2,08 mm) insulation sizes, double

elements in all products and a solvent-resistant plastic construction.
