Product>>Splice>>3M Electrical Insulating Resin 電力絕緣防水膠>> Splicing Kit 灌膠式 防水中間接頭 Resin Kit 92-NBA 0 up to 92-NBA 7
Inline Joint Kit Series with Resin 40  92-NBA1 92-NBA2 92-NBA3 92-NBA4 92-NBA5 92-NBA6 92-NBA7





3M Scotchcast resin joint kits 92-NBA x 灌膠式防水中間接頭 Resin Kit 92-NBA 0 up to 92-NBA 7 Inline Joint Kit Series with Resin 40

3M  Scotchcast  resin joint kits 92-NBA x are designed to be used for 1-core up to 5-core non shielded, polymeric, low voltage energy cables up to 0.6/1 (1.2) kV. 3M  Scotchcast  resin inline joint kits contain a one-part transparent mould body for simple and easy handling and so distances inside the body can be checked easily. Also included is 3M  Scotchcast  40 Polyurethane resin, delivered in a two-chamber bag with an integrated spout and aluminium guard bag for protection against humidity.



適用電纜外徑 min-max    Cable outside diameter (mm)

92-NBA 0

92-NBA 1 92-NBA 2 92-NBA 3 92-NBA 4 92-NBA 5 92-NBA 6 92-NBA 7
 6-16 10-22 12-25 13-32 18-36 19-45 27-54 29-64



* Resin 40 comes in two transparent chamber bags with an integrated Closed Mixing and Pouring (CMP) system.
* One-part mould body with a snap fit closing system for quick and easy handling.
* Transparent mould body for easy control of connector distances in the joint.
* Web spacer for 4-core cable application to ensure the distance between connectors for sizes NBA 1 up to NBA 4.
* Pre-cut foam sealing elements to provide reliable sealing to the mould body without tooling for all cable application diameters.
* Abrasive sponge to clean and roughen the cable jacket.
* Closure cap to prevent any pollution.


Type of Test according to EN50393 Table 3 / I / A1        Results
AC Voltage Withstand Test in air 4kV AC/ 1 min           passed
Insulation Resistance Test in air 1kV DC                      > 10.000MΩ
Heat Cycle in air 63 cycles: 5h/3h                               passed
Heat Cycle in water 63 cycles: 5h/3h                           passed
AC Voltage Withstand Test in water 4kV AC/ 1 min      passed
Insulation Resistance Test in water 1kV DC                 > 10.000MΩ

型號

適用電纜外徑 min-max

Number of
Resin 40 bags

外部尺寸長度

兩邊外部圓孔外徑

92-NBA 0

6-16mm

1x90ml

148 mm

32 mm

92-NBA 1

10-22mm

1x135ml

178 mm

36 mm

92-NBA 2

12-25mm

1x200ml

230 mm

38 mm

92-NBA 3

13-32mm

1x370ml

270 mm

55 mm

92-NBA 4

18-36mm

1x380ml

319 mm

63 mm

92-NBA 5

19-45mm

1x1375ml

369 mm

76 mm

92-NBA 6

27-54mm

2x1375ml

479 mm

101 mm

92-NBA 7

29-64mm

3x2200ml

643 mm

130 mm

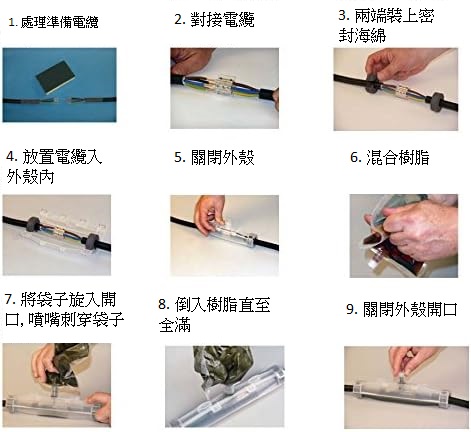

使用方式:

1. 處理準備電纜

2. 對接電纜

3. 兩端裝上密封海綿

4. 放置電纜入外殼內

5. 關閉外殼

6. 混合樹脂

7. 將樹脂袋子旋入外殼開口,噴嘴刺穿袋子

8. 倒入樹脂直至完全滿

9. 關閉外殼開口



1. Preparing the cable

2. Phase connection

3. Positioning of the pre-formed sealing sponges

4. Placement of cables in the housing

5. Closing the housing

6. Mixing the resin

7. Screwing the bag onto the housing, the nozzle will pierce the bag

8. Pouring the resin until it is fully filled

9. Closing the openning















3M Scotchcast 72-N Series Signal and control Inline Splicing Kits 72-N1 72-N2 72-N3 72-N4 72-N5 72-N6 直路灌膠接頭 防水中間接頭

3M Scotchcast 72-N series kits splice shielded or nonshielded plastic - and rubber-jacketed, signal and control (or power) cables rated up to 1 kV.

Product Series

Molded Body Length

Cable O.D. Range

電纜外徑

72-N1

7-1/8" (18,1 cm)

0.25 - 0.625" (6 - 16 mm)

72-N2

10-7/16" (26,8 cm)

0.500 - 1.00" (13 - 25 mm)

72-N3

15-7/16" (39,2 cm)

0.625 - 1.50" (16 - 38 mm)

72-N4

15-5/8" (39,7 cm)

1.00 - 2.00" (25 - 51 mm)

72-N5

20-5/16" (51,6 cm)

1.25 - 2.25" (32 - 57 mm)

72-N6

25" (63,5 cm)

1.25 - 3.25" (32 - 83 mm)

   72-N1 Nonshielded cable only.



每一接頭包含下列組件:
1組 外膜(mold)
1卷 膠帶23(tape 23)
1條 砂布(abrasive cloth)
1袋 絕緣防水膠(2104 compound)
Jumper wire ( not for 72-N2)

此組件不包含壓接套管(connector)
